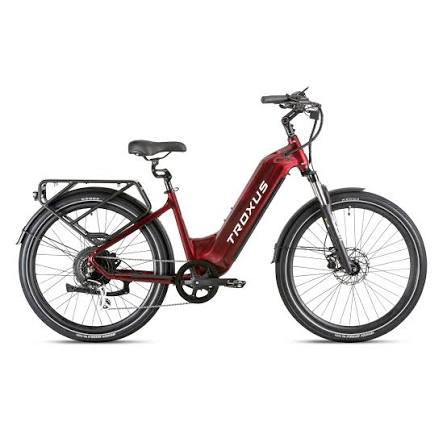

Trax Plus IQ Step-Thru Metallic Red

$2,099.00

The Trax Plus iQ electric hybrid bike is designed for everyday commuting with added stability for varied city road conditions. It delivers a balanced ride feel with smooth pedal assist, reliable range, and Ride iQ connectivity for smarter urban mobility.

Max Speed	Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range	Up To 70 Miles Per Charge
Weight Limit	Maximum Load: 383 lbs
Net Weight	68.5 lbs

E-Systems

Motor	Ananda® 48V/500W Hub-Drive Motor, 65Nm Max. Torque
Battery	UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells
Display	Troxus Ride iQ 1.0 Anroid / Apple. Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote
Sensor	Switchable Torque And Cadence Sensor Modes
Pedal Assist	0~5 Level Pedal Assist
Charger	2A / 100-240V Input / 54.6V Output
Lights	Front Light & Rear Light
Controller	48Vx18A/12V

Components

Frame	Hydroformed Aluminum Frame
Fork	Zoom® Front Suspension Fork, 65mm Travel
Chain	KMC® 1/2"x3/32"
Crankset	Aluminum, 48T, w/ Single Alloy Chainguard, Square Taper, 170mm
Rear Derailleur	Shimano® RD-M310-L, Altus, 8-Speed
Cassette	Shimano 8-Speed, 12-32T
Shifter	Shimano® 8-Speed
Bottom Bracket	Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires	KENDA® KWICK SEVEN-5 27.5"x2.2", w/ Reflective Stripes, Puncture-Resistant, E-50 Rated
Front Hub	Alloy, 36H, 100mm, 3/8"Axle w/ Nuts
Rear Hub	48V 500W/ 28 MPH. 65Nm
Rims	Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", w/ Eyelets
Spokes	Stainless 13G. Front / 12G. Rear
Brakes	Tektro® Hydraulic, w/ Brake Sensors
Rotors	180mm / 180mm
Saddle	DDK DE-430 Comfort / 200mm Wide
Seat Post	Troxus w/ Suspension, Alloy 30.9x400mm, Adjustable
Seat Post Clamp	Alloy, 35mm w/ Quick Release
Stem	Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing
Handlebar	Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep
Grips	Ergonomic Comfort
Pedals	Alloy, 9/16"axles, w/ BS reflectors
Headset	Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing
Rear Shocks	N/A
Rack	Alloy Rear Model/ MIK-Compatible Rear Rack
Fender	Alloy, 27.5", Full coverage
Kickstand	Adjustable Side Kickstand
