Trax Whim IQ Step-Thru

$1,599.00

Color Glacier Blue Natural Slate

Size Small Medium

The Trax Whim iQ electric cruiser bike is designed for effortless city riding with comfort-first geometry and Ride iQ smart integration. It simplifies everyday commuting with smooth assist, step-through accessibility, and a relaxed riding experience for urban travel.

Max Speed	Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range	Up To 70 Miles Per Charge
Weight Limit	Maximum Load: 300 lbs. / Rider: 265Lbs.

E-Systems

Motor	ShengYi 48V/500W Hub-Drive Motor, 50Nm Max. Torque
Battery	UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/14Ah (672Wh) with Samsung® Cells

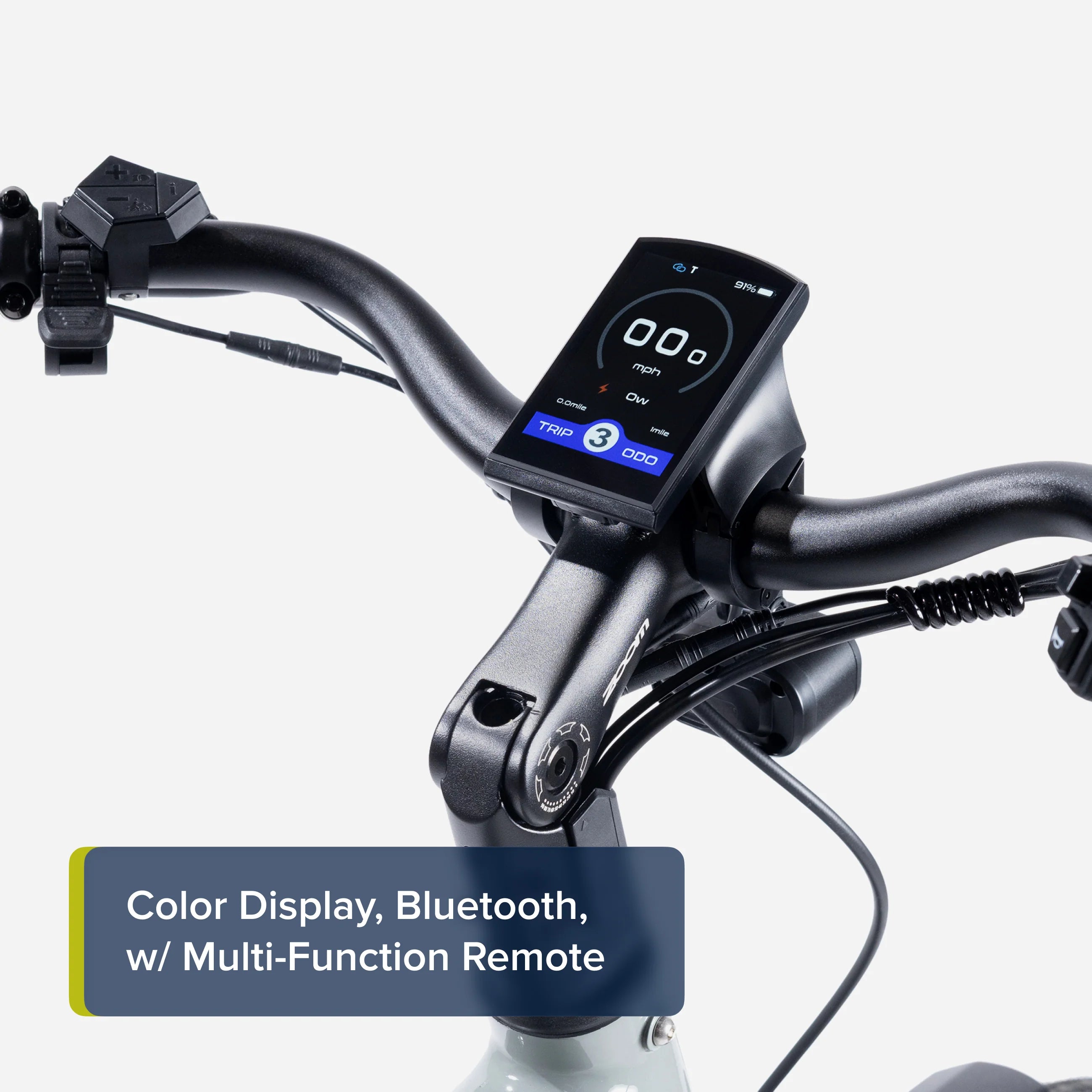

Display	Troxus Ride iQ 1.0 Anroid / Apple. Color Display, Bluetooth, w/ Multi-Function Remote
Sensor	Switchable Torque And Cadence Sensor Modes
Pedal Assist	0~5 Level Pedal Assist
Charger	2A / 100-240V Input / 54.6V Output
Lights	Front Light & Rear Light
Controller	48Vx15A/12V

Components

Frame	6061-T6 Aluminum Step-Thru, Pedal Forward Frame
Fork	Aluminum, Rigid Fork, Threadless Steerer
Chain	KMC® 1/2"x3/32"
Crankset	Aluminum, 52T, w/ Single Alloy Chainguard, Square Taper, 170mm
Rear Derailleur	Shimano® RD-M310-L, Altus, 8-Speed
Cassette	Shimano 8-Speed, 12-32T
Shifter	Shimano® 8-Speed
Bottom Bracket	Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires	27.5x2.4"
Front Hub	Alloy, 36H, 100mm, 3/8"Axle w/ Nuts
Rear Hub	ShengYi 48V/500W/ 28MPH. 50Nm
Rims	Alloy, Double Wall Front & Rear, 36H, w/ Eyelets
Spokes	Stainless 14G. Front / 13G. Rear
Brakes	Tektro® Hydraulic, w/ Brake Sensors
Rotors	180mm / 160mm
Saddle	Troxus Comfort
Seat Post	Alloy, 30.9x350mm, Adjustable
Seat Post Clamp	Alloy, 35mm w/ Quick Release
Stem	Alloy, Forged, Adjustable, Ext. 90mm
Handlebar	Alloy, 31.8mmx680mm Wide, 37º Backsweep
Grips	Ergonomic Comfort
Pedals	9/16″ Alloy Platform with Reflectors
Headset	Threadless, Internal 1-1/8"
Rear Shocks	N/A
Rack	N/A
Fender	N/A
Kickstand	Adjustable Side Kickstand
